HeadZap
Components
|
|
|
|
|
|
| |
|
AuSIM's HeadZap system is provided either with, or as an upgrade to,
AuSIM's GoldSeries audio vectorization servers. All HeadZap software
mounts on the GoldSeries server, and is normally provided pre-installed.
In addition to the software and manuals, HeadZap includes the following
components:
|
| |
|

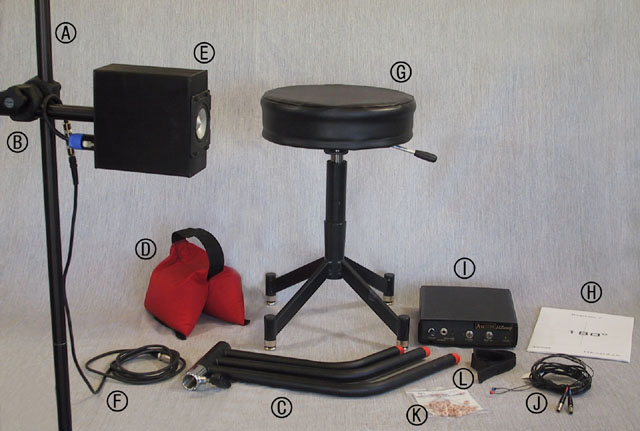

Components included with the basic HeadZap System
|
|
| A |
Speaker stand components: Foba Combitubes; 2-80cm, 2-40cm, 1-20cm
|
| B |
Speaker stand components: tube clamp for horizontal arm |
| C |
Speaker stand components: three-leg base |
| D |
Speaker stand components: sand bag to stabIlize base |
| E |
HeadZap speaker: aluminum casing; specially equalized for HeadZap |
| F |
Speaker cable with 1/4" balanced connector |
|
|
| G |
Subject Stool: adjustable, rotating stool; with stool cover |
| H |
Wall markers: 8½" x 11"; 30° increments |
| I |
HeadZap power amplifier and pre-amplifier with power supply |
| J |
HeadZap Blocked-Meatus microphone pair: specially equalized;
with cables |
| K |
Etymotic Trial E-A-R Ring Kit (microphone seals) |
| L |
Velcro headband for securing microphone cables |
|
| |
